PIN TORX SECURITY BUTTON SCREW
PIN TORX SECURITY BUTTON SCREW
Product Description
Technical Specification
Finish | Polished |
Usage/Application | INDUSTRIAL |
Brand | FETEDZ |
Quantity Per Pack | 100 |
Material | SS304 |
Size | M3 TO M12 |
Maximum torque transfer and positive tool engagement mean easier drive installation with less pressure and slippage. Torx® Pin-Head offers a high degree of security and requires a matching driver bit. These Torx tamper-resistant flat head screws are available in: Button Head and Flat Head Machine and Sheet Metal Anti-Tamper Screws, and in Pan Head Self-Drilling Vandal-Resistant Screws. Stainless steel Torx security screws only. Also, these Torx tamper-resistant screws are similar to the generic 6-Lobe. For those requiring alternative security fastener features besides these security torx bolts, consider our, which provide a unique dual-hole design for specialised applications.
Security Torx
Security Torx screws are often called Pin Torx due to the additional pin at the centre of the six-point star socket head. This centre pin makes it impossible to use a standard Torx screwdriver, making this type of fastening tamper-proof.
Security Torx screws are sometimes called: 6 lobe screws, tamper-proof torx, 6 lobe pin torx, torx TR, torx pin and star pin drive screws. Tamper-proof security Torx screws provide a higher level of security than standard Torx due to the specialised security Torx screwdriver that’s needed to loosen them.
Security Torx Screwdrivers
As noted, standard 6-point Torx screwdrivers will not mate with security Torx screws due to the additional centre pin in the socket head. To use security Torx screws requires appropriate tools that accommodate the additional security pin.
Torx Screw Sizes
As noted, it’s important to match the size of the Torx screw or bolt socket head with the correct size of Torx screwdriver. Here’s a chart showing the standard Torx sizes.
| Torx Size | Imperial Point to Point (inches) | Metric Point to Point | Max Torque Range |
|---|---|---|---|
| T1 | .031" | .81mm | .02 to .03 Nm |
| T2 | .036" | .93mm | .07 to .09 Nm |
| T3 | .046" | 1.10mm | .14 to .18 Nm |
| T4 | .050" | 1.28mm | .22 to .28 Nm |
| T5 | .055" | 1.42 mm | .43 to .51 Nm |
| T6 | .066" | 1.70 mm | .75 to .9 Nm |
| T7 | .078" | 1.99 mm | 1.4 to 1.7 Nm |
| T8 | .090" | 2.31 mm | 2.2 to 2.6 Nm |
| T9 | .098" | 2.50 mm | 2.8 to 3.4 Nm |
| T10 | .107" | 2.74 mm | 3.7 to 4.5 Nm |
| T15 | .128" | 3.27 mm | 6.4 to 7.7 Nm |
| T20 | .151" | 3.86 mm | 10.5 to 12.7 Nm |
| T25 | .173" | 4.43 mm | 15.9 to 19 Nm |
| T27 | .195" | 4.99 mm | 22.5 to 26.9 Nm |
| T30 | .216" | 5.52 mm | 31.1 to 37.4 Nm |
| T40 | .260" | 6.65 mm | 54.1 to 65.1 Nm |
| T45 | .306" | 7.82 mm | 86 to 103.2 Nm |
| T50 | .346" | 8.83 mm | 132 to 158 Nm |
| T55 | .440" | 11.22 mm | 218 to 256 Nm |
| T60 | .519 | 13.25 mm | 379 to 445 Nm |
| T70 | .610 | 15.51 mm | 630 t0 700 Nm |
| T80 | .690 | 17.54 mm | 943 to 1048 Nm |
| T90 | .784 | 19.92 mm | 1334 to 1483 Nm |
| T100 | .871 | 22.13 mm | 1843 to 2048 Nm |
SS 304 PIN TORX SECURITY BUTTON SCREW SCREW Manufacturer In India.
SS 304 PIN TORX SECURITY BUTTON SCREW SCREW Exporter From India.
SS 304 PIN TORX SECURITY BUTTON SCREW SCREW Ready Stock Availeble In Mumbai
SS 304 PIN TORX SECURITY BUTTON SCREW At Best Price In India.
SS 304 PIN TORX SECURITY BUTTON SCREW Premium Quality Material.
Stainless Steel PIN TORX SECURITY BUTTON SCREW Stainless Steel PIN TORX BUTTON SCREW Stainless Steel SECURITY SCREW Stainless Steel PIN TORX SCREW Stainless Steel 6-Lobe Pin Torx Screw Security Torx - Button Head Machine Screw - Stainless Steel (A2) Tamper Proof Security Torx Button Head Machine Screws Pin Torx Button Head Security Screw Your Trusted SS 304 PIN TORX SECURITY BUTTON SCREW Exporter from India - Delivering Excellence Worldwide. We are a premier exporter based in India, offering a wide range of high-quality SS 304 PIN TORX SECURITY BUTTON SCREW to global customers. Our products are engineered with precision, ensuring optimal performance and reliability in diverse applications. With a strong commitment to quality, we have established ourselves as a preferred choice for clients seeking dependable spring washer solutions. Reach out to us now to discuss how we can cater to your international needs with our top-grade products."

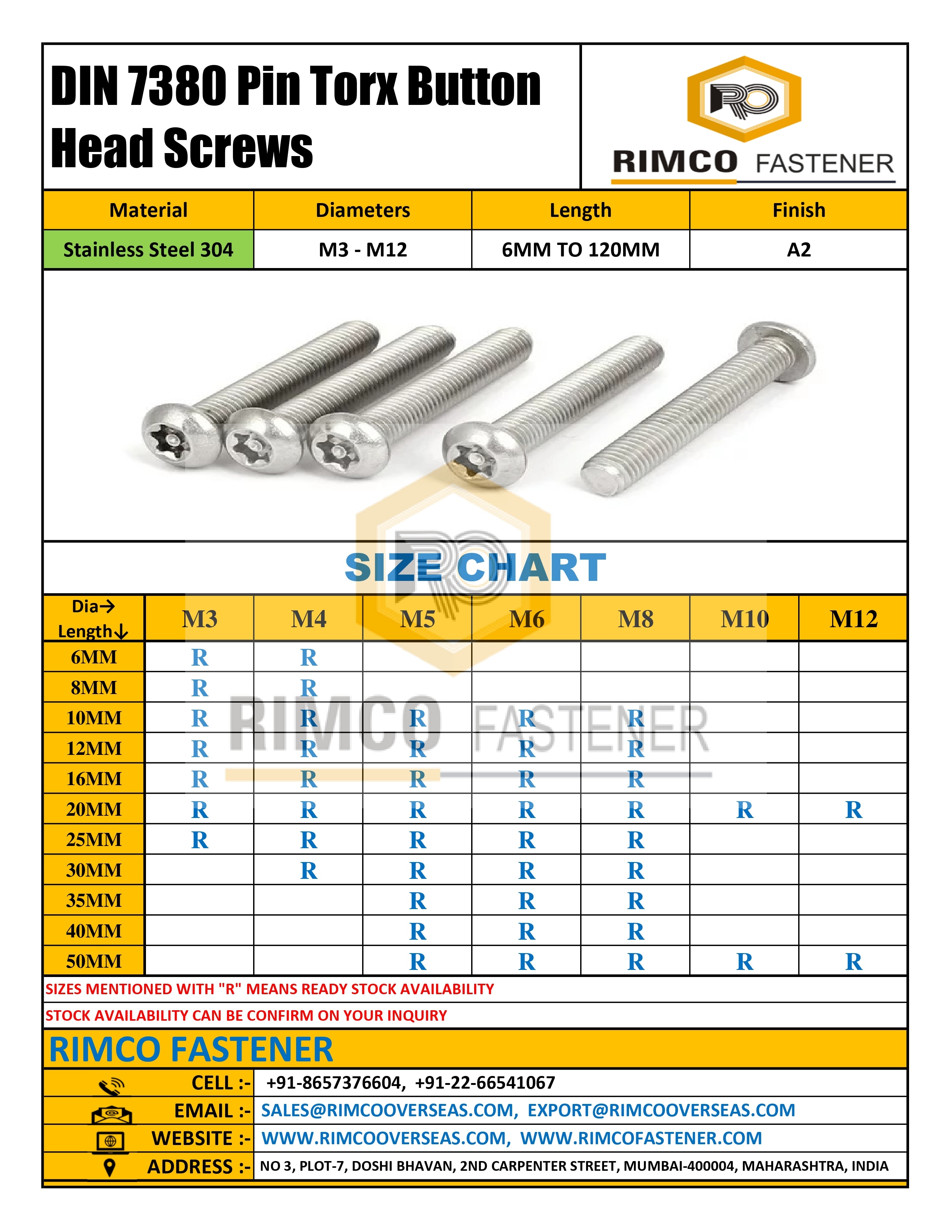

SIZES AVAILABLE IN STOCK SS 304 PIN TORX BUTTON SECURITY SCREW
M3 X 10MM M4 X 10MM M4 X 12MM M4 X 16MM M5 X 10MM M5 X 12MM M5 X 16MM M5 X 20MM M5 X 25MM M5 X 30MM M5 X 35MM M5 X 40MM M5 X 50MM M6 X 12MM M6 X 16MM M6 X 20MM M6 X 25MM M6 X 30MM M6 X 40MM M6 X 50MM M8 X 16MM M8 X 20MM M8 X 25MM M8 X 30MM M8 X 40MM M8 X 50MM
#SS304FASTENER #TORXSCREW #A2-70 #RIMCO #RIMCOFASTENER #MAKEININDIA
About Pin Button Torx Security Screw
We At RIMCO FASTENER, One Of The Leading Manufacturers, Exporter & Suppliers Of Stainless Steel 304 Pin Torx Security Button Screw Of Superior Quality. These Are Available In Application Specific Designs As Per The Standard Quality Norms. Our Stainless Steel 304 Pin Torx Security Button Screw Are Highly Durable And Appreciated For Their Strength And Toughness. As One Of The Prominent Manufacture And Supplier, We Are Offering Stainless Steel 304 Pin Torx Security Button Screw To Valuable Clients. These Are Made Out Of High-Quality Raw Material Purchased From Certified Vendors. Stainless Steel 304 Pin Torx Security Button Screw Are Designed By Skilled Engineers With The Latest Technology. These Are Very Strong And Sturdy In Nature And Are Available In Different Sizes And Shapes At The Economic Prices. Stainless Steel 304 Pin Torx Security Button Screw Manufacturers In India, Stainless Steel 304 Pin Torx Security Button Screw Suppliers In India, Stainless Steel 304 Pin Torx Security Button Screw Exporters In India, , Stainless Steel 304 Pin Torx Security Button Screw Distributors In India, Stainless Steel 304 Pin Torx Security Button Screw Stockiest In India, Stainless Steel 304 Pin Torx Security Button Screw Traders In India, Stainless Steel 304 Pin Torx Security Button Screw Dealers In India. Authorized Manufacturers Of Stainless Steel 304 Pin Torx Security Button Screw In India. Application & Uses Of RIMCO FASTENER, Stainless Steel 304 Pin Torx Security Button Screw Stainless Steel 304 Pin Torx Security Button Screw used in Petroleum Industry Stainless Steel 304 Pin Torx Security Button Screw used in Aerospace Industry Stainless Steel 304 Pin Torx Security Button Screw used in Chemical Industry Stainless Steel 304 Pin Torx Security Button Screw used in oil & Gas Industry Stainless Steel 304 Pin Torx Security Button Screw used in Nuclear Energy Sector Stainless Steel 304 Pin Torx Security Button Screw used in Automotive Industries Stainless Steel 304 Pin Torx Security Button Screw Stainless Steel 304 Pin Torx Security Button Screw Ready Stock Stainless Steel 304 Pin Torx Security Button Screw In Best Price Stainless Steel 304 Pin Torx Security Button Screw In Best Rates Stainless Steel 304 Pin Torx Security Button Screw At Discounted Rates Stainless Steel 304 Pin Torx Security Button Screw In Wholesale Rate Stainless Steel 304 Pin Torx Security Button Screw At Factory Rate Stainless Steel 304 Pin Torx Security Button Screw Quotation Stainless Steel 304 Pin Torx Security Button Screw Best Quality Exporter of Stainless Steel 304 Pin Torx Security Button Screw in India Exporter of Stainless Steel 304 Pin Torx Security Button Screw in Mumbai Manufacturer of Stainless Steel 304 Pin Torx Security Button Screw in India Manufacturer of Stainless Steel 304 Pin Torx Security Button Screw in Mumbai Stockiest of Stainless Steel 304 Pin Torx Security Button Screw in India Stockiest of Stainless Steel 304 Pin Torx Security Button Screw in Mumbai Stainless Steel 304 Pin Torx Security Button Screw Exporter Stainless Steel 304 Pin Torx Security Button Screw Stockiest Stainless Steel 304 Pin Torx Security Button Screw in India Stainless Steel 304 Pin Torx Security Button Screw in Mumbai Stainless Steel 304 Pin Torx Security Button Screw in Australia Stainless Steel 304 Pin Torx Security Button Screw in Bahrain Stainless Steel 304 Pin Torx Security Button Screw in Bangladesh Stainless Steel 304 Pin Torx Security Button Screw in Brazil Stainless Steel 304 Pin Torx Security Button Screw in Canada Stainless Steel 304 Pin Torx Security Button Screw in Germany Stainless Steel 304 Pin Torx Security Button Screw in Iran Stainless Steel 304 Pin Torx Security Button Screw in Kuwait Stainless Steel 304 Pin Torx Security Button Screw in Malaysia Stainless Steel 304 Pin Torx Security Button Screw in Mexico Stainless Steel 304 Pin Torx Security Button Screw in The Netherlands Stainless Steel 304 Pin Torx Security Button Screw in New Zealand Stainless Steel 304 Pin Torx Security Button Screw in Nigeria Stainless Steel 304 Pin Torx Security Button Screw in Qatar Stainless Steel 304 Pin Torx Security Button Screw in Saudi Arabia Stainless Steel 304 Pin Torx Security Button Screw in Singapore Stainless Steel 304 Pin Torx Security Button Screw in South Africa Stainless Steel 304 Pin Torx Security Button Screw in Sri Lanka Stainless Steel 304 Pin Torx Security Button Screw in Turkey Stainless Steel 304 Pin Torx Security Button Screw in UAE Stainless Steel 304 Pin Torx Security Button Screw in United Kingdom Stainless Steel 304 Pin Torx Security Button Screw in United States Stainless Steel 304 Pin Torx Security Button Screw in Venezuela Stainless Steel 304 Pin Torx Security Button Screw in Andhra Pradesh Stainless Steel 304 Pin Torx Security Button Screw in Arunachal Pradesh Stainless Steel 304 Pin Torx Security Button Screw in Assam Stainless Steel 304 Pin Torx Security Button Screw in Bihar
